RDC1003

Fast Ethernet Media Converter

Return to List

Product Introduction

RDC1003 is an industrial grade cost-effective solution for conversion of 10/100Base-T(X) to 100Base-FX interface which allows extending of communication distance using optical fiber. The media converter supports MDI/MDIX auto detection for 100Base-T(X) interface, so crossover wires are not required. The RDC1003 has a wide operating temperature range from -40°C to +85°C, accepts a wide input voltage range, and is suitable for harsh operating environments.

Request for a quotation

Specifications

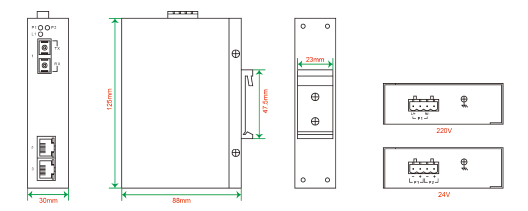

Dimension
Ordering Information

Specifications

Table 1. General

Description
Support	Ø Max. 2 x 10/100Base-T(X) RJ45 Ports Ø Max. 1 x 100Base-FX Port, SC or ST Connector, multimode or singlemode Ø All 10/100Base-TX Ports support auto-negotiation Ø Store & Forwarding
IP40 Galvanized Steel Enclosure
Operating Temp. Range: ‐40°C to +85°C
35mm DIN Rail Mount

Table 2. Technical Specification

Description	Specifications
10/100Base‐T(X) RJ45 Ports	Max. 2, Auto MDI/MDI-X
100Base-FX (SC or ST Connector）	Max. 1
Technology
Switching Mode	Store - Forwarding
Physical Characteristics
Enclosure	IP-40 Galvanized Steel
Dimensions (W x D x H)	LV: 26(W)x70(D)x95(H)mm, HV: 28(W)x92(D)x130(H)mm
Weight (g)	< 1kg
Power
Input Power	LV: 12-36VDC, Redundant Input; HV: 77-300VDC/85-264VAC
Power Consumption (Typ.)	< 3W
Overload Current Protection	Present
Reverse Polarity Protection	Present

Table 3. Compliance Specifications

Type	Standards
Electromagnetic Emissions	FCC Part 15, CISPR (EN55022) class A,
Electromagnetic Immunity	EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge) EN 61000-4-6 (CS), EN 61000-4-8
Shock	IEC 60068-2-27
Free Fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Operating Environment	-40oC to +85oC, No Fans
Storage Environment	-40oC to +85oC
Operating Humidity	5% - 95% (Non-condensing)
Warranty	5 Years

Table 4. Standards and Management

Description

Specification

IEEE Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX and 100Base-FX

RFC Compliance

RFC 4445 MDI

Base	Power Supply	Mount	Ethernet Port 2-3	Ethernet Port 1	Optional	Description
RDC1003	LV	D	2RJ45	1SMSC
RDC1003	\|	\|	\|	\|		Base unit
	LV	\|	\|	\|		Dual Input 12~36VDC
	HV	\|	\|	\|		Single Input 77~300VDC/85-264VAC
		D	\|	\|		DIN Rail Mount
			2RJ45	\|		2 x 10/100Mbit/s RJ45 Ports
				1MMSC		1 x 100FX Multimode, SC Connector, 2Km
				1MMST		1 x 100FX Multimode, ST Connector, 2Km
				1SMSC		1 x 100FX Singlemode, SC Connector, 20km
				1SMST		1 x 100FX Singlemode, ST Connector, 20km
				1SSC40		1 x 100FX Singlemode, SC Connector, 40km
					C	Conformal Coating
					U	User Customization

Note: Longer range singlemode f/o port (60km and 120km) is also available, please contact our sales representative for more information.

Example Order Code: RDC1003-LV-D-2RJ45-1SMSC

Description: RDC1003 Industrial Media Converter, LV input 12-36VDC, 35mm DIN Rail Mount, with 2 x 10/100Base-X RJ45 Ports, 1 x 100Base-FX F/O Port, Singlemode SC connector, 20Km.
