L3 Managed Rack Mount Full Gigabit Ethernet Switch
RRS3228 is an intelligent full gigabit Layer 3 Ethernet switch designed to withstand the harshest environments of utility substations and rolling stock applications.
RRS3228 supports up to 24 x 10/100/1000Base-T(X) RJ45 ports and 4 x 1000Base-X SFP ports, or 16 x 10/100/1000Base-T(X) RJ45 ports, 8 x 100/1000Base-X SFP ports and 4 x 1000Base-X SFP ports, or 8 x 10/100/1000Base-T(X) RJ45 ports, 16 x 100/1000Base-X SFP ports and 4 x 1000Base-X SFP ports, or 24 x 100/1000Base-X SFP ports and 4 x 1000Base-X SFP ports. The switch is IEC61850-3 and IEEE1613 compliant and provides Layer 2 redundancy support through functions such as STP/RSTP/MSTP and ERPS , as well as layer 3 redundancy VRRP that assuring protection of all mission critical network applications. In addition, RRS3228 supports various advanced layer 3 routing features such as static and dynamic routing features including RIP and OSPF, and even multicast routing PIM-SM. RRS3228 can be managed via the Web UI, Telnet/SSH, and Console (CLI). The switch accepts a wide voltage range of 12-36VDC, 36-58VDC, or high voltage of input 77-300VDC or 85-264VAC. The switch is made of IP40 galvanized steel and has a wide operating temperature range from -40°C to +85°C, which is suitable for the harshest of environments without the use of fans.
Specifications
Table 1. General
Description | |
Support | Ø Max. 28 x Gigabit Ports (Copper and SFP selectable) Ø All RJ45 Ports support auto-negotiation Ø Store & Forwarding |
IP40 Galvanized Steel Enclosure | |
Operating Temp. Range: ‐40°C to +85°C | |
19” Rack Mount, 1 U Height | |
Table 2. Technical Specification
Description | Specifications |
10/100/1000Base‐T(X) RJ45 Port | 28, Auto MDI/MDI-X |
100/1000Base-X SFP Port | 24 |
1000Base-X SFP Port | 28 |
Local Console Management Port | RS232, RJ45 Connector, 115200bps, 8, N, 1 |
LEDs | Power Supply Status, RJ45 Ports, F/O Ports, Device Status |
Technology | |
Switching Mode | Store - Forwarding |
MAC Table | 32K |
Jumbo Frame | Up to 13k Bytes |
Layer 3 Features | Static Routing, RIP V1/V2, OSPF, VRRP, PIM-SM |
Prioritization | 8 Priorities, 4 Priority Queues Strict and Relative Priofity Support of IEEE802.1p/DSCP Scheduling |
Redundancy | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) and G.8032 ERPS(Ethernet Ring Protection Switching) Link Aggregation (Static & IEEE802.3ad LACP) |
Trafic Filtering | Port-based VLAN, IEEE802.1Q VLAN No. of VLANs: 4096 Management VLAN Port Mirroring, 1:1 and N:1 IGMP Snooping v1/v2 multicast filtering Rate limit (ingress/egress) Broadcast Storm limit, Limit to broadcast/multicast/unknown unicast |
Network Security | Access Control List Port-based MAC filtering MAC Binding Port-based IEEE802.1x Authentication RADIUS Authentication Automatic DDOS protection |
Device Management & Maintenance | SNMP v1/v2/v3 WEB and CL Device Management, Telnet/SSH fore remote management DHCP Client Multi-level user/password Syslog, RMON, PING test and LLDP Firmware upgrade and configuration backup via WEB and CLI management interfaces Switch configuration file backup/restore |
Time Synchronization | SNTP |
Power | |
24VDC Power Input | 4-pin terminal block, 12-36VDC, Redundant power input optional |
48VDC Power Input | 4-pin terminal block, 36-58VDC, Redundant power input optional |
220V Power Input | 4-pin terminal block, 85-264VAC or 77-300VDC, Redundant power input optional |
Power Consumption (Typ.) | < 30W |
Overload Current Protection | Present |
Reverse Polarity Protection | Present |
Relay Contact | Via 3-pin terminal block, < 24V/1A |
Physical Characteristics | |
Enclosure | IP-40 Galvanized Steel |

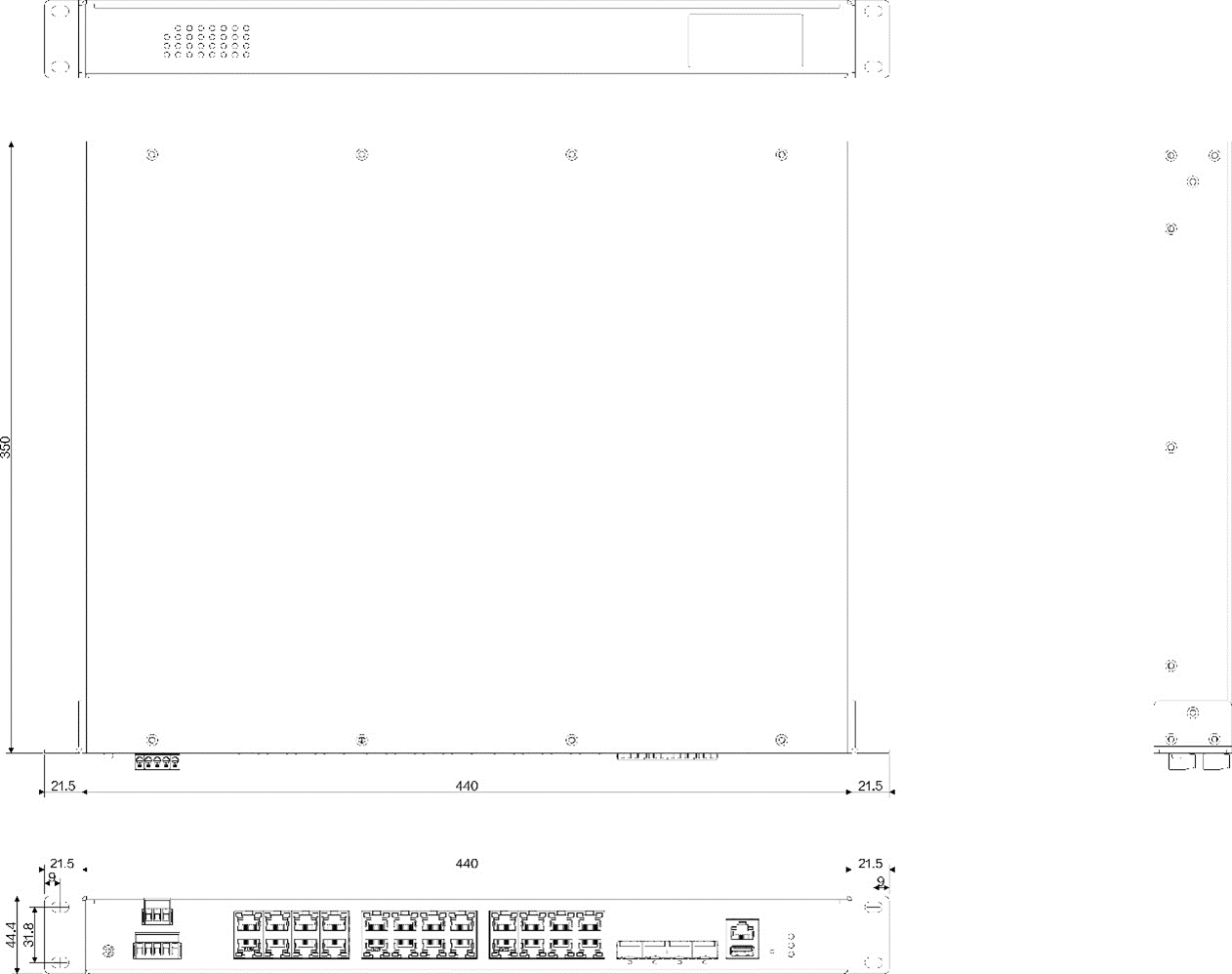

Dimensions (W x D x H) | 440(W) x 350(D) x 44(H) mm |
Weight (g) | <6kg |
Table 3. Compliance Specifications
Type | Standards |
Electromagnetic Emissions | FCC Part 15, CISPR (EN55022) class A, |
Electromagnetic Immunity | EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge) EN 61000-4-6 (CS), EN 61000-4-8 |
Shock | IEC 60068-2-27 |
Free Fall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
Environmental Protection | RoHS and WEEE Compliance |
Operating Environment | -40oC to +85oC, No Fans |
Storage Environment | -40oC to +85oC |
Operating Humidity | 5% - 95% (Non-condensing) |
Warranty | 5 Years |
MTBF | 41 Years |
Table 4. Standards and Management
Description | Specification |
IEEE Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX and 100Base-FX IEEE 802.3ab 1000BASE-T(X) IEEE 802.3z 1000BASE-X IEEE 802.3x flow control IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, G.8032 ERPS IEEE 802.1p QoS IEEE 802.1Q VLAN IEEE 802.3ad LACP IEEE 802.1x Authentication |
RFC Compliance | RFC 4445 MDI, RFC 1215 Trap, RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1493 Bridge MIB, RFC 2674 VLAN MIB, RFC 1643, RFC 1757, RSTP MIB, Private MIB, LLDP MIB |
Base | PS1 | PS2 | Mount | Slot 1 | Slot 2 | Slot 3 | Fixed Port | Optional | Description |
RRS3228 | HV | HV | RF | 8GSFP | 8GSFP | 8GRJ45 | 4GSFP | ||
RRS3228 | | | | | | | | | | | | | | | | | Base Unit, with 4 x 1000M SFP Ports and 3 Slots |
| | XX | | | | | | | | | | | | | None | |
LV | LV | | | | | | | | | | | | | Power Input 12-36VDC | |
MV | MV | | | | | | | | | | | | | Power Input 36-58VDC | |
HV | HV | | | | | | | | | | | | | Power Input 77-300VDC or 85-264VAC | |
RF | | | | | | | | | | | Rack Mount, Power Terminals and Ethernet Ports on Rear Panel/ LED and Console on Front Panel | |||
8GRJ45 | | | | | | | | | 8 x 10/100/1000Base-T(X) RJ45 Ports | ||||
8GSFP | | | | | | | | | 8 x 100/1000BASE-X SFP Ports (SFP Transceiver must be ordered separately) | ||||
| | 8GRJ45 | | | | | | | 8 x 10/100/1000Base-T(X) RJ45 Ports | ||||
| | 8GSFP | | | | | | | 8 x 100/1000BASE-X SFP Ports (SFP Transceiver must be ordered separately) | ||||
| | | | 8GRJ45 | | | | | 8 x 10/100/1000Base-T(X) RJ45 Ports | ||||
| | | | 8GSFP | | | | | 8 x 100/1000BASE-X SFP Ports (SFP Transceiver must be ordered separately) | ||||
| | | | | | 4GSFP | | | 4 x 1000BASE-X SFP Ports (SFP Transceiver must be ordered separately) | ||||
C | Conformal Coating | ||||||||
U | User Customization |
Example Order Code: RRS3228-HV-HV-RF-8GRJ45-8GSFP-8GSFP-4GSFP
Description: RRS3228 Industrial Managed Full Gigabit Layer 3 Ethernet Switch, Dual Redundant HV Input 77-300VDC or 85-264VAC, 19” Rack Mount, 1U Height, Power Terminals and Ethernet Ports on Rear Panel/ LED and Console on Front Panel, with 8 x 10/100/1000Base-T(X) RJ45 Ports, 16 x 100/1000Base-X SFP Ports (SFP Transceiver must be ordered separately), and 4 x 1000Base-X SFP Ports (SFP Transceiver must be ordered separately).
